Harrier 2A
Overview

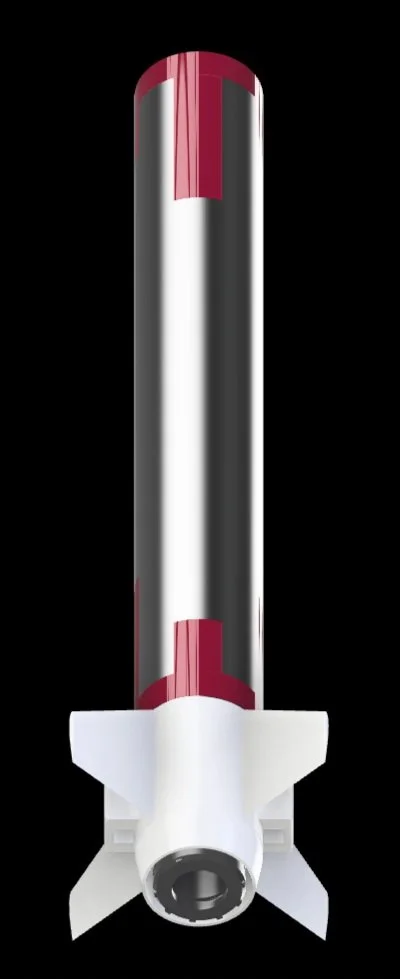

Harrier 2A is my first rocket intended to break Mach 1, or 767 mph and complete the objectives of Project 767. Harrier 2A is, for the most part, an upgraded version of Harrier 1, with the main changes being an upgraded shock cord mount and a longer body tube to improve stability and accommodate larger motors. Harrier 2A is my first rocket to fly on a J impulse motor. Harrier was a vital part of Project 767 and is now on display in University School of Nashville’s Hassenfeld Library.
Height
1364 mm / 53.7 in
Diameter
79 mm / 3.11 in
Mass
1.75 kg / 61.7 oz
Motor Mount
38 mm / 1.49 in
Flight Profile
Transonic
Speed Record
317 m/s / 709 mph / Mach 0.925 (4/21/2024)
Payload
Internal Height
220 mm / 8.66 in
Internal Diameter
76 mm / 2.99 in
Capability
Harrier’s payload bay can house a variety of sensors to measure information about its flight and behavior
The payload section can also house mass simulators and has a mount for a single down-facing camera
Booster
Height
684 mm / 26.93 in
Diameter
79 mm / 3.11 in
Motor Mount
38 mm / 1.49 in
Capability
Harrier’s booster section can power flights with a variety of 38 mm engines
The engine mount is equipped with two camera mounts as well as four airfoiled fins
The booster also houses recovery devices like the parachute, shock cord, and Chute Release
